Last week we spent some time reviewing the TLS and SIP Options requirements for Microsoft Direct Routing, this week it’s payday! Time to make some final adjustments and place some calls.

Setting your outbound routes

For my setup, I wanted to route the outbound calls to my CPaaS, where I could do many other things besides just Origination or Termination. After some experimenting, we had our route configured and we could try some calls.

Calls were now flowing from my Teams client to my SBC and onto my CPaaS / external PSTN phone numbers. Much to my jubilation, the quality was pretty good, check it out for yourself…


Inbound routes

Now the harder part, routing calls into Teams. For this part, I had to route to the Microsoft SIP resources + assign external numbers from my CPaaS to the Teams active users. This is where things get “interesting”.

As it turns out, the only way you can assign an external number to a user in Teams (today at least) is to run commands from a Power Shell connected to the Teams instance. Since I am a Mac user, that meant spinning up a VirtualBox, installing Windows on a VM, installing PowerShell and SFB modules. (Microsoft, please tell me there is a C# or Graph API coming for this).

Be sure to Run PS as Administrator

Then we need to run the command to connect to the SFB resources…

It will create some remoting modules…

Once authenticated you will end up back at the prompt, where you can enter the commands to add your phone numbers.

That command looks something like this…

Set-CsUser -Identity “user@domain.name” -OnPremLineURI tel:1234567890 -EnterpriseVoiceEnabled $true -HostedVoiceMail $true

Tech tip: Here is a link to all the Skype module commands.

If it works, it will return you back to the PS prompt. A quick look inside Teams and we will see that the number has been associated with the user as an On-premises number.

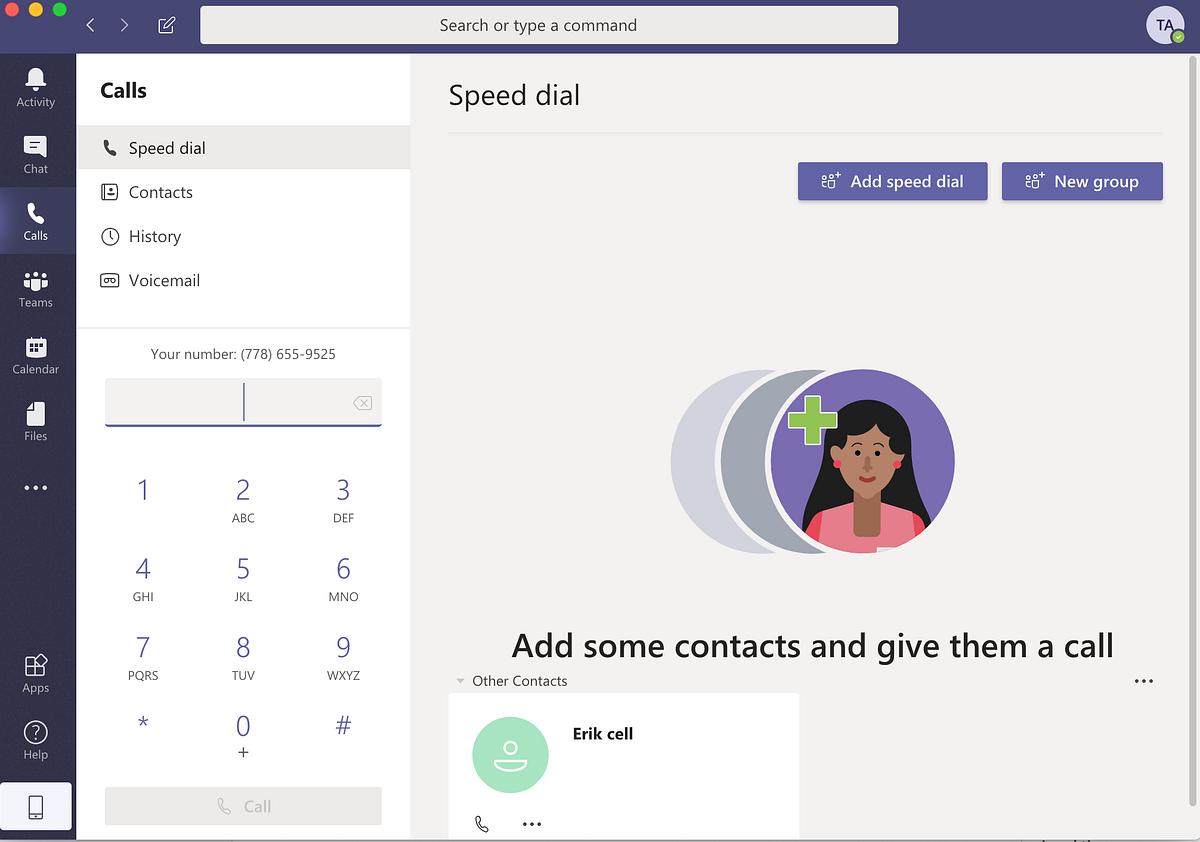

Here we see the Teams user with the assigned number inside the Team client interface…

Now, we have to route the inbound number from the CPaaS to the SBC and then onto Teams. In my case, I registered my SBC to a CPaaS SIP endpoint and used that connection to send inbound calls from my number to the SBC endpoint. The SBC then forwards the calls to the Teams SIP servers and decides where to send the media. Even though all my endpoints were in the Vancouver area, the media sometimes connected in East USA, which seems weird, maybe their Western hubs were overloaded, not sure.

Et Voila! Once everything was set up, calls inbound started working. Celebrate your small victories, as my dad always said. Here is a screenshot of me answering a call from an external number to my Teams phone number.

I added a bit of redundancy (few more servers) monitoring + failover logic and rolled it out for my buddy’s business.

He’s elated. Not only is the price right, but he now has a great deal more flexibility in how he uses the systems. He added some SIP desk phones to the mix, which now ring simultaneously when someone calls a Teams number.

I also added some SMS capabilities, TTS (Text To Speech), Call Recording and Call Whisper to his setup.

The next post will be on using external telephony resources with some of the Microsoft Phone System features like; Auto-Attendant, Call Queues, Transfer, etc.


I hope you found this article interesting. We have had good interest in the offering thus far and now are now thinking of building a complete all-in-one solution that would do all of this through an intuitive interface eg. connect external phone systems, carriers/aggregators/cpaas, buy/manage numbers, choose carriers, set up domains, add TLS certs, et al. Let us know if you think that would be something you would be interested in.

If you have any questions or comments or want your own SBC for Direct Routing, get in touch via erik@snapsonic.com or give us a call 1.877.897.1952
